General Description:
JEFFER can provide a complete solution for container glass production line for customers worldwide, including food & beverage bottle, beer & wine bottle, cosmetic bottle, pharmaceutical bottle, and jar. The product color can be flint, high-white, ultra-white, green, amber.
Types of bottle glass classification
| Item | Description |
| 1 | Container / Bottle |
| 2 | Container with handle |
| 3 | Tubular container |
| 4 | Volume: 1ml~25000ml |
| Item | Description |
| 1 | Roundness (majority) |
| 2 | Oval |
| 3 | Square |
| 4 | Rectangle |
| 5 | Flat |
- Sort by diameter of bottle neck:
| Item | Description |
| 1 | Wide-mounth bottle or jar |
| 2 | The inner diameter of the bottle is over 30mm, with small or no shoulder, which is usually used for semifluid and powder or bulk solid goods. |
| 3 | |
| 4 | |
- Sort by bottle mouth and caps:
The diameter and tolerance of bottle mouth is a standard one. The bottle mouth can be divided into screw, cork, pouring, crown cap, roll-on cap, plastic cap, spray mouth, press type mouth, prize up mouth, glass stopper frosted mouth, mouth with handle and tubular type mouth, etc.
- Sort by requirement of use:
| Item | Description |
| Single use bottle | Used once and discard it. |
| Recycle bottle | These products can be recycled and reused many times |
| Item | Description |
| Form by mould | The glass liquid will be form a certain type of bottles via mould |
| Form by tubular method | The glass liquid will be stretched into a glass tube and re-manufactured to a required bottle. |
| Item | Description |
| Flint / Clear | Most of the glass containers are flint, which will keep stores more visually. |
| Green | Usually, the green bottle is used for drinks and beers. |
| Brown / Amber | Normally, the brown bottle is for pharmaceuticals or beers, this kind of color can absorb ultraviolet rays, which will help to protect the stores. |
| Opal | This kind of bottle is for cosmetics, vanishing cream, unguent and liquor. |

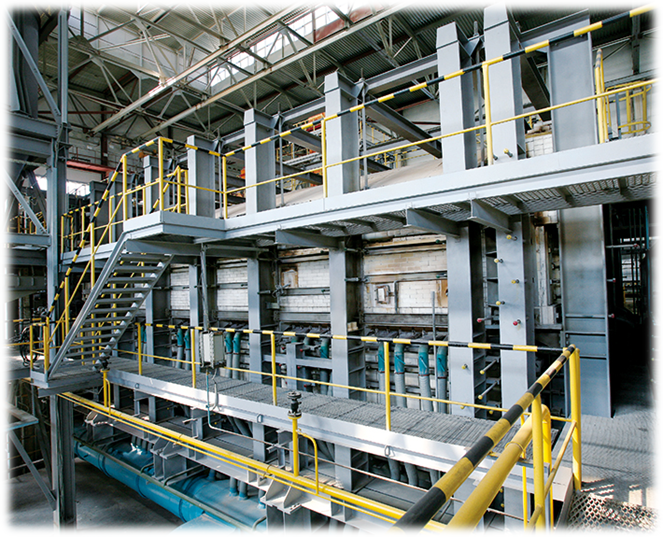

Furnace:
JEFFER can design different types of furnaces according to expected melting capacity:
- End-fired regenerative furnace (20~300 ton/day)
- Cross-fired regenerative furnace (300~500 ton/day)
- Recuperative furnace
- Electric furnace
- Full oxygen furnace
With different fuels:
- Natural gas
- Heavy oil
- Coal gas
- Full-electric heating
- LPG
- Diesel
Forehearth:
JEFFER provide special design of forehearth to achieve optimized glass quality and temperature stability and homogeneity through highly efficient heating system and indirect cooling design. Especially for lightweight bottle and NNPB production.
Supply Scope:
- Batch Plant
More details please refer to Batch Plant
- Melting Section
- 1Glass Furnace
- Refractory materials
- Combustion system
- Mechanical equipment
- Air cooling equipment
- Instruments & electrical equipment
- Automatic control system (SIEMENS PLC system)
- Industrial TV camera
- Technological steel structures
- Electric boosting system
- Bubbling system
- 2Working-end & Forehearth
- Refractory materials
- Combustion system
- Automatic cooling system
- Instruments & Automatic control system
- Technological steel structures
- NNPB production available
- Coloring forehearth

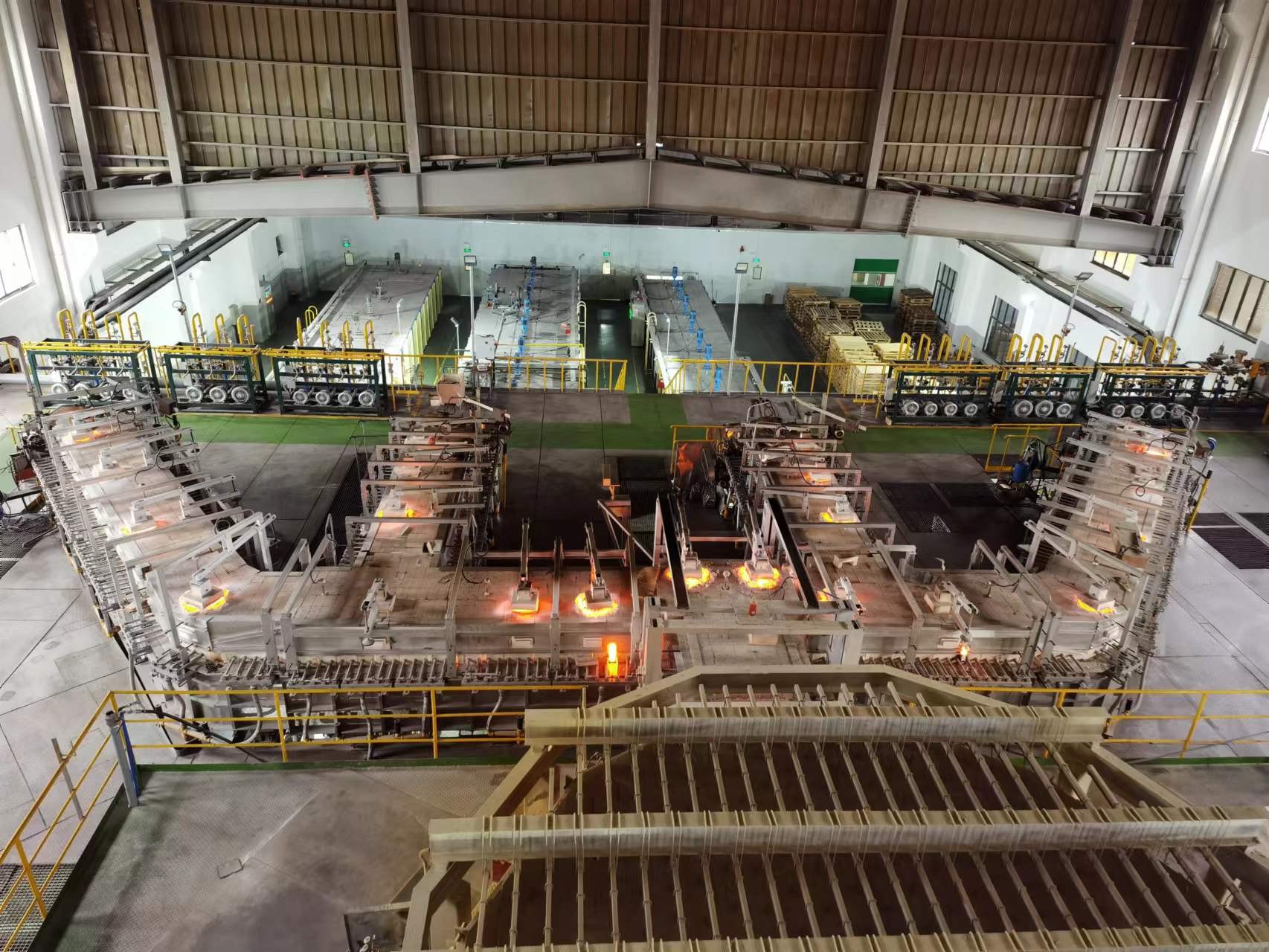

- Forming & Annealing Section
- Gob feeder

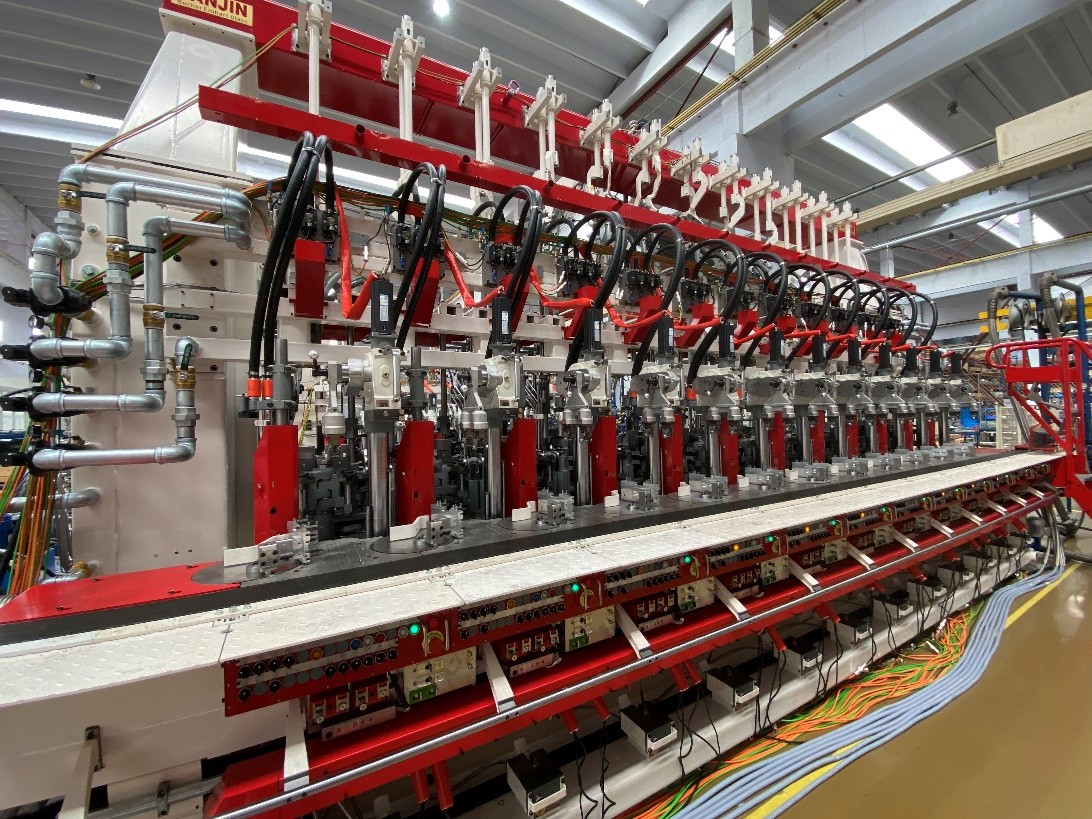

- I.S machine/Bottle forming machine
- Ware transfer
- Cross conveyor
- Hot-end & cold-end coating
- Stacker
- Annealing lehr
- Online Inspection Section
- Camera inspection machine
- Carousel inspection machine
- Visual inspection
- Reject device & cullet return system
- Conveying & Packaging Section
- Single/multi-liner conveyor
- Accumulating table
- Palletizer
- Shuttle & chain conveyor
- Vertical wrapping machine
- Horizontal wrapping machine
- Shrinking machine
|
|

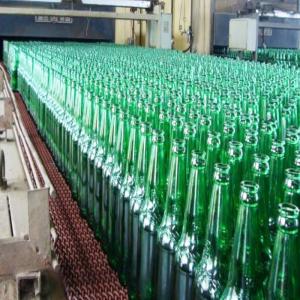

300ml Green Clear Amber Glass Bottle Production Line in Beer Bottle Industry Images
|
